Designing a Prototype Spring: A Step-by-Step Guid

Are you looking to turn your spring concepts into reality swiftly and accurately? Dive into the world of spring prototyping, a crucial step for engineers and designers alike. This spring prototyping process not only brings your ideas to life but also ensures they meet exacting standards for performance and quality. Explore how Spring Prototyping can streamline your development process, reduce time to market, and help you achieve unparalleled precision in your custom spring projects.

What is spring prototyping?

Spring prototyping is the process of designing, creating, and testing a preliminary model of a spring, intended to replicate the functionality and performance of the final product. This process is crucial in developing custom spring solutions tailored to specific application requirements, ensuring that the spring meets all necessary criteria before mass production begins.



What are the steps involved in designing a prototype spring?

Designing a prototype spring involves a series of steps that ensure the spring meets the specific requirements of its intended application. Here are the steps based on the provided sources:

Understand the Application Requirements

The initial step in designing a prototype spring is a deep understanding of its intended application. This encompasses not just recognizing the mechanical role of the spring within a larger system, but also understanding the operational dynamics it will face. For instance, if the spring is part of an automotive suspension system, the designer needs to account for variables such as load bearing, impact resistance, and cyclic fatigue. This thorough understanding ensures that the design can meet or exceed the expected performance requirements, enhancing durability and functionality in its specific role.

Moreover, comprehending how the spring integrates into the system is crucial. This involves analyzing how movements and forces are transferred through the spring to other components. For a medical device, for example, precision and reliability in force delivery might be critical. By aligning the spring design closely with these specialized needs, manufacturers can ensure optimal performance, contributing to the overall efficacy and safety of the end product.

Consider the Spring’s Environment

Evaluating the environmental conditions in which the spring will operate is crucial to selecting the appropriate materials and design features. Temperature fluctuations, for example, can affect the mechanical properties of the spring material, potentially leading to loss of function or structural integrity. Materials like high-grade stainless steel or nickel alloys might be chosen for their ability to withstand such extremes.

In addition, the potential for corrosion or chemical degradation requires careful consideration. Springs that will be exposed to corrosive substances or harsh environments, such as marine applications or chemical processing equipment, need materials and finishes specifically designed to resist these conditions. Protective coatings or the use of inherently corrosion-resistant materials can prevent premature wear and failure, thus ensuring the longevity and reliability of the spring under challenging conditions.



Define the Prototype Spring’s Purpose

Defining the purpose of the spring is paramount to the design process. The intended function of the spring—whether it’s to absorb shocks in automotive suspensions, maintain tension in manufacturing machinery, or provide compression in electronic devices—directly influences crucial aspects of its design. The function determines the type of spring needed, such as torsion, extension, or compression, and informs decisions about the material selection and spring configuration. This clarity in purpose ensures that the spring can meet the operational demands of its application, performing effectively under the specified conditions and loads.

Choose Prototype Spring Material

Choosing the right materials for your prototype spring is a critical decision that can significantly affect the quality, functionality, and cost of your product design. Different materials have distinct properties, advantages, and disadvantages, and several factors must be considered before making your choice. This guide will help you navigate through some of the most common materials used for prototyping springs and how to evaluate them based on your specific needs.

1. Understanding Spring Material Properties

Before diving into the selection process, it’s essential to understand the properties of potential spring materials. These properties include:

• Mechanical Properties: Such as tensile strength, fatigue resistance, and modulus of elasticity.
• Environmental Resistance: Including corrosion resistance and temperature resistance.
• Magnetic Properties: Some applications may require non-magnetic materials.
• Electrical Conductivity: Important for springs used in electrical applications.
• Cost and Availability: The material cost and its availability can impact your prototype’s budget and timeline.

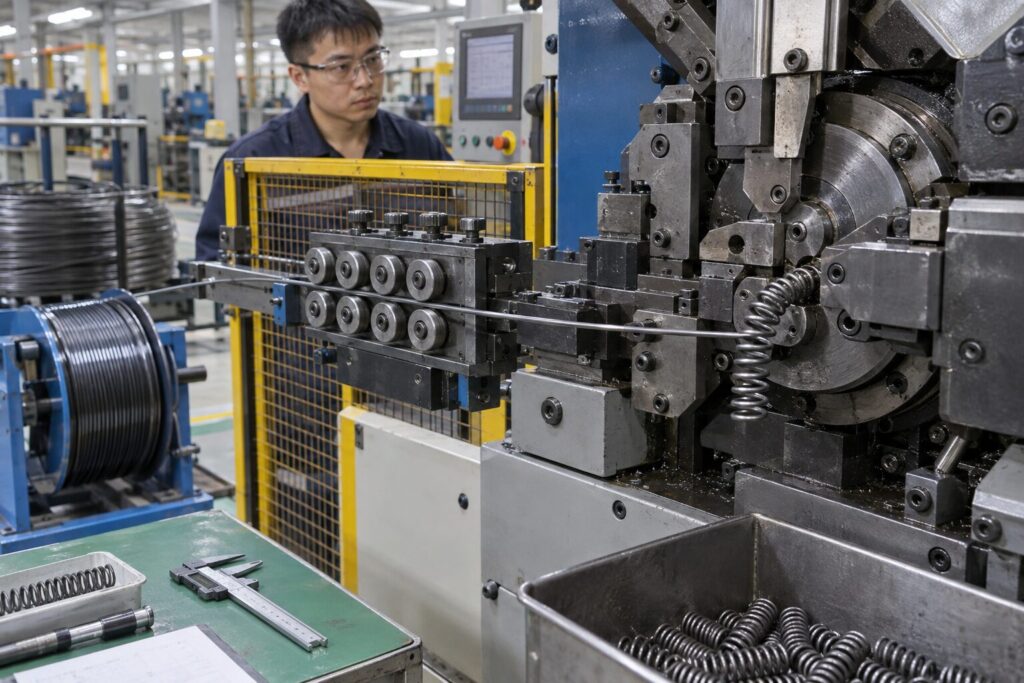

Music Wire and Hard Drawn Wire

These are the most common and economical spring materials. They are not corrosion-resistant and have a maximum temperature resistance of 250ºF (121ºC). They are suitable for applications not exposed to harsh environments.

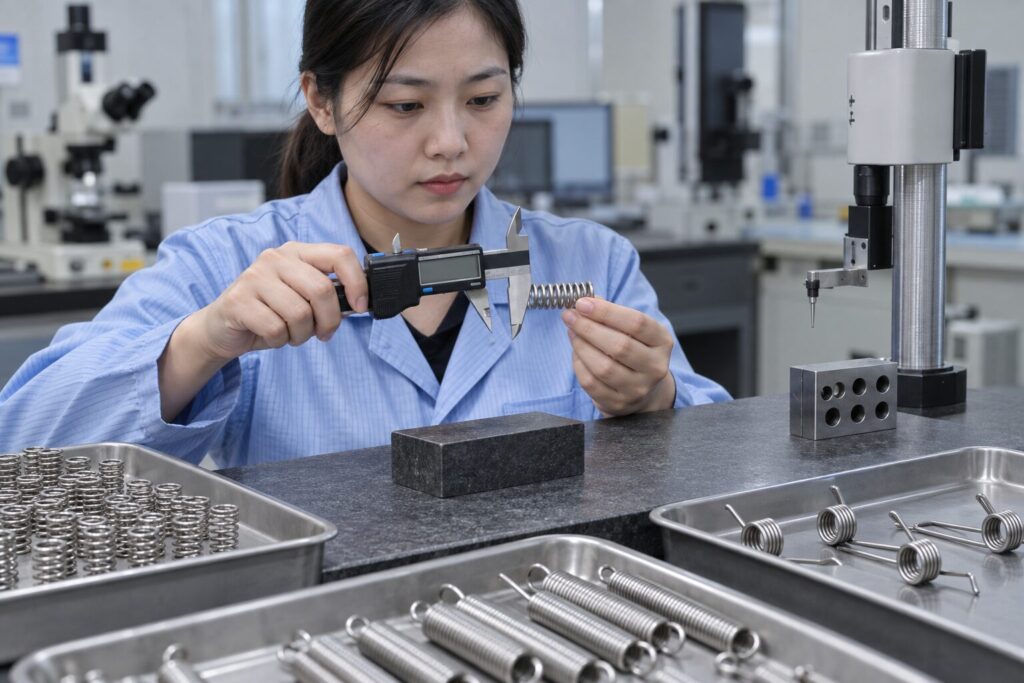

Stainless Steel (Types 302, 316, and 17-7)

Stainless steel springs are resistant to moisture and have varying levels of temperature resistance and tensile strengths. They are ideal for corrosive environments. Type 316 is also 90% non-magnetic, making it suitable for applications requiring non-magnetic materials.

Beryllium Copper and Elgiloy

For non-magnetic and non-sparking requirements, Beryllium Copper is an excellent choice. Elgiloy offers superior corrosion resistance and strength, making it suitable for demanding applications. However, these materials are expensive and not readily available, so they are recommended for final production stages.

High Carbon Spring Wire

This material is popular for its balance between cost and performance, offering good tensile strength and fatigue resistance. It’s suitable for a wide range of applications but may require protective coatings in corrosive environments.

Alloy Steel Wire and Stainless Steel Wire

These materials excel in applications requiring good fatigue resistance, corrosion resistance, and temperature resistance. They are particularly useful for torsion springs subjected to high levels of torque.

3. Selecting the Right Material

When selecting the material for your prototype spring, consider the following steps:

• Identify the Application Requirements: Determine the mechanical loads, environmental conditions, and any special requirements (e.g., non-magnetic, electrical conductivity).
• Evaluate Material Properties: Match the application requirements with the material properties. Consider using resources like the Spring Manufacturers Institute (SMI) Handbook for detailed material specifications.
• Consider Cost and Availability: Balance the performance requirements with the material cost and availability. For prototyping, it may be beneficial to start with more accessible and less expensive materials before moving to more specialized options for final production.
• Consult with Experts: If you’re unsure about the best material for your application, consult with spring manufacturers or engineers who specialize in spring design. They can provide valuable insights and recommendations based on their experience.

Consult a Prototype Spring Engineer

Early collaboration with a spring engineer is crucial in optimizing the design of a prototype spring. These specialists bring a depth of knowledge in materials science, mechanical engineering, and industry standards, which is vital for refining the design parameters of the spring. They can recommend the best materials for the specific environmental and operational conditions the spring will face and help anticipate potential manufacturing and application challenges. Their insights can lead to design improvements that enhance the durability, performance, and cost-effectiveness of the spring, making them invaluable in the prototyping process.



Prototyping Springs

Prototyping typically utilizes rapid manufacturing techniques such as CNC machining and 3D printing. These methods allow for quick production of functional models that closely resemble the final product, enabling fast iteration and modification. CNC machining is particularly effective for metal springs, providing high precision and the ability to work with a range of materials. On the other hand, 3D printing is invaluable for complex spring geometries and quick concept validations, though it may use materials that are less representative of final mechanical properties.



Testing Prototype Springs

Testing different types of springs involves specific procedures tailored to their unique functions and mechanical properties. Here’s a detailed overview of the critical testing points for compression springs, torsion springs, extension springs, and clock springs:

Testing Compression Springs

1. Load Test
   • Purpose: To determine the spring’s ability to withstand compression forces without permanent deformation.
   • Process: Applying increasing loads to the spring until it reaches the design compression limit, then verifying that it returns to its original length.
2. Squaring and Grinding Test
   • Purpose: To ensure the ends of the spring are flat and square for uniform load distribution.
   • Process: Checking the perpendicularity of the spring’s ends and the flatness post-grinding.
3. Buckling Test
   • Purpose: To assess the stability of the spring under load, particularly for longer springs.
   • Process: Compressing the spring to its solid height and observing any lateral movement or buckling.
4. Fatigue Test
   • Purpose: To verify the life expectancy under repeated cycles of compression.
   • Process: Cycling the spring through specified load levels until failure to determine its endurance.

Testing Torsion Springs

1. Torque Test
   • Purpose: To measure the rotational force the spring can withstand and deliver.
   • Process: Applying increasing angular displacements to assess the spring’s torque generation and resistance to twisting.
2. Elastic Limit Test
   • Purpose: To establish the maximum stress the spring can handle before permanently deforming.
   • Process: Incrementally increasing the torque until the spring does not return to its original shape.
3. Cycle Life Test
   • Purpose: To determine the durability of the spring under repeated torsional loads.
   • Process: Subjecting the spring to repeated loading within its elastic range to simulate real-life operational conditions.

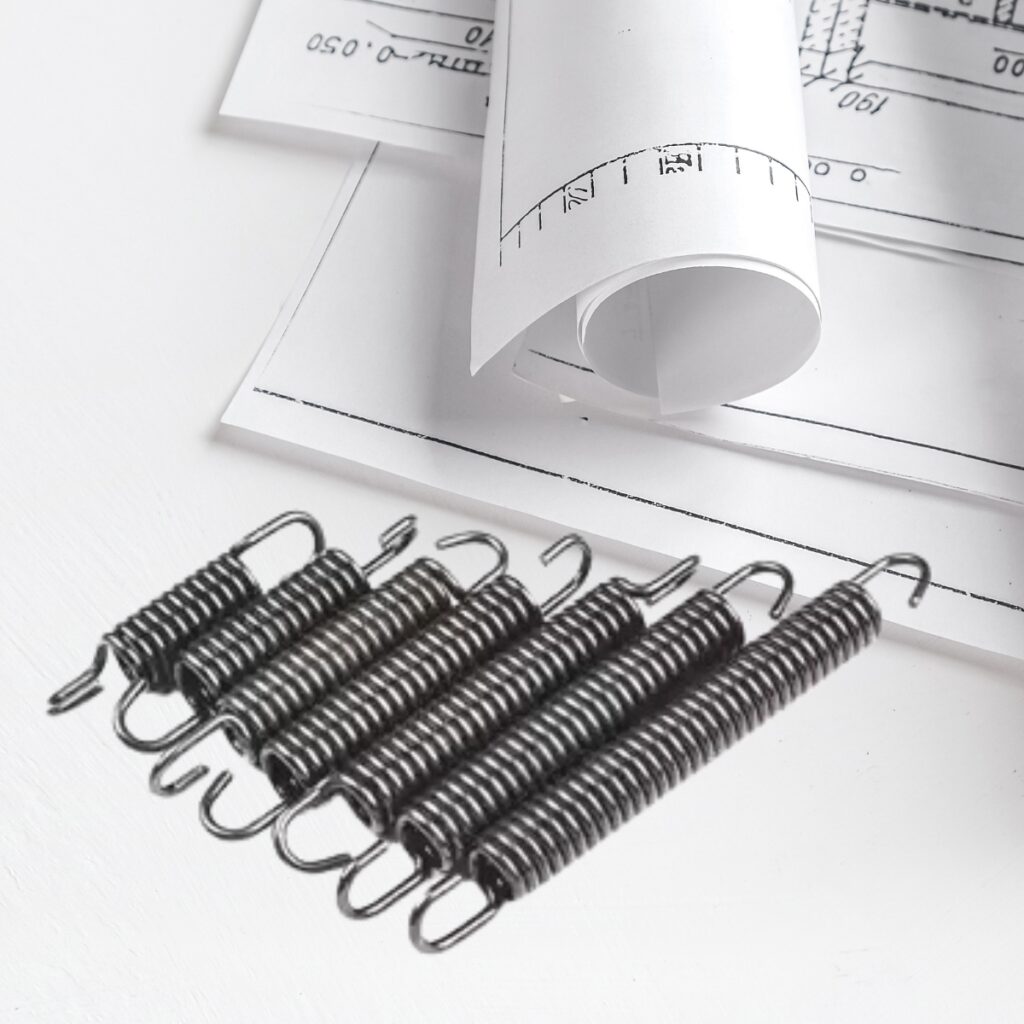

Testing Extension Springs

1. Initial Tension Test
   • Purpose: To measure the force required to begin extending the spring.
   • Process: Gradually applying force until the coils start to separate, noting the initial load.
2. Load and Elongation Test
   • Purpose: To assess the relationship between the applied force and the resulting elongation.
   • Process: Applying increasing forces and measuring the corresponding stretches to ensure they meet design specifications.
3. Fatigue Test
   • Purpose: To evaluate the spring’s endurance under repeated stretching.
   • Process: Repeatedly extending the spring to its operational limit to check for failure or performance degradation.

Testing Clock Springs

1. Winding/Unwinding Test
   • Purpose: To ensure the spring can be wound and unwound smoothly without damage or significant loss of force.
   • Process: Cycling the spring through its full range of motion to check for consistent performance and absence of defects.
2. Torque Consistency Test
   • Purpose: To verify that the spring delivers consistent torque throughout its unwinding.
   • Process: Measuring the torque output at several points during unwinding to ensure it remains within the required limits.
3. Settling Test
   • Purpose: To determine if the spring takes a set or loses force after being held in a wound state for an extended period.
   • Process: Leaving the spring fully wound for a set duration, then testing for any reduction in force or structural changes.

Each type of spring requires these specialized tests to ensure that they will perform reliably under their specific operational conditions. This rigorous testing regime helps prevent failures in application, extending the life of the product and ensuring safety and efficiency.



Salt Spray (Salt Fog) Test for Surface Treatment Evaluation

The Salt Spray (or Salt Fog) Test is a critical evaluation method used across various types of springs to assess the effectiveness of surface treatments and coatings in protecting against corrosion. This test is particularly important for springs used in environments prone to corrosion, such as marine, industrial, and certain outdoor applications.

Purpose: To simulate corrosive conditions and measure the resistance of the spring’s surface treatment to rust and degradation over time.

Process: The springs are placed in a controlled testing chamber where a saline spray (fog) is continuously dispersed. The concentration of the salt solution and the duration of the test are typically aligned with the harshness of the environment in which the spring will operate. During and after the test, the springs are examined for signs of corrosion, pitting, or breakdown of the coating. The time it takes for rust to appear and the degree of surface degradation observed are key indicators of the coating’s performance and longevity.





Design Modifications for Your Prototype Spring

When test results indicate that a prototype does not meet the required specifications, necessary design modifications are crucial. Adjustments may include altering the wire diameter to adjust strength and flexibility, changing the coil size to modify the spring’s operational characteristics, or selecting a different material to enhance durability and performance under specific environmental conditions. Additionally, leg configurations might be revised to improve how the spring interacts with other components in its assembly, ensuring better integration and functionality.

These modifications are informed by detailed analysis of the test data, which highlights the areas of deficiency. Making these adjustments helps to optimize the spring’s design for its intended application, balancing factors like load capacity, fatigue resistance, and environmental suitability. It’s a critical process that enhances the overall quality and efficacy of the final product.

Repeat Testing Prototype Springs

After design modifications are implemented, it is essential to conduct additional rounds of testing on the modified prototype. This repeat testing is crucial to verify that all previously identified issues have been adequately addressed and that the spring now meets all the required specifications. It ensures that the modifications have not introduced new issues and that the spring performs reliably under expected operational conditions.

By rigorously adhering to these steps of redesign and retesting, designers can refine their double torsion spring designs to achieve optimal performance, durability, and reliability. This iterative process is essential for ensuring that the final product not only meets but exceeds the highest standards of quality and effectiveness. Each test and modification cycle brings the product closer to the ideal state, ready for successful application in its intended environment.



Avoiding Design Mistakes in Spring Prototyping

When designing a prototype spring, common design mistakes to avoid include:

1. Ignoring Load Capacity: Not considering the maximum load capacity can lead to a spring that is unable to handle the intended stress, resulting in premature failure or incorrect functionality.
2. Inadequate Material Selection: Choosing a material without considering factors like corrosion resistance, temperature range, and strength can result in a spring that doesn’t perform well under specific conditions or environments.
3. Neglecting Environmental Effects: Failing to account for the effect of temperature and the chemical nature of the environment on the mechanical properties of the spring material can lead to reduced performance or failure.
4. Designing with Sharp Corners: Sharp corners should be avoided as they can be stress concentrators and lead to crack initiation, especially in materials like DELRIN® acetal resin. Generous fillets should be provided instead.
5. Overlooking Fatigue Resistance: For springs that will be operated repeatedly, it’s important to ensure that the design stresses do not exceed the fatigue resistance of the material under the operating conditions[2].
6. Incorrect Specification of Dimensions: Not accurately specifying the length, diameter, number of coils, and other critical dimensions can result in a spring that does not fit the application or meet performance requirements.
7. Failing to Perform Adequate Testing: Skipping force testing and other evaluations can lead to a lack of understanding of the spring’s strength and durability, potentially resulting in a design that does not meet the necessary standards.
8. Disregarding Manufacturing Constraints: Designing a spring without considering the limitations of the manufacturing process can lead to a design that is difficult or impossible to produce, increasing costs and complexity.
9. Insufficient Testing for Integration: Not thoroughly testing the spring within the larger system it will be a part of can lead to integration issues, where the spring may not function properly with other components.
10. Not Planning for Scalability: Designing a spring without considering future production demands can result in a prototype that is not scalable, leading to increased costs and delays when production needs to ramp up.

By avoiding these mistakes, designers can create prototype springs that are reliable, functional, and ready for both testing and integration into their final applications.

Choosing the Right Manufacturer for Your Prototype Springs

When embarking on the journey of spring prototype manufacturing, choosing the right manufacturer is crucial for the success of your project. Here are key factors to consider:

Manufacturing Capabilities and Equipment:

• CNC coilers for precision and agility.
• Heat treatment machines to enhance performance.
• Grinding machines for specific application needs.
• 3D scanners and robotics for quality control and efficiency.
• Powder coating machines for durability.

Order Flexibility and Cost Transparency:

• Look for manufacturers offering small minimum orders, ranging from 100 to 10,000 pieces, to accommodate various project sizes.
• A competitive price, inclusive of materials, facilitates insight into the economic facets of the project.

Lead Times and Quality Assurance:

• Manufacturers capable of shorter lead times ensure faster turnaround, crucial for timely project completion.
• Clear quality assurance processes, especially in CNC manufacturing, guarantee consistency and reliability of the final product.

In summary, the right spring prototype manufacturer should offer not just the technical capabilities and equipment to produce high-quality springs but also flexibility in order quantities, competitive price, quick turnaround times, and a strong commitment to quality and environmental standards.



Conclusion

Throughout this exploration of spring prototype manufacturing, we’ve delved deep into the crucial role that prototyping plays in the spring design and spring manufacturing process. From the initial stages of spring design conceptualization and spring material selection to the meticulous testing and refinement phases, we’ve seen how spring prototype manufacturing acts as the critical bridge between a conceptual idea and a market-ready product. This comprehensive approach not only ensures that prototype springs meet the stringent requirements of their intended applications but also significantly optimizes both time and resources, enhancing cost efficiency and customer satisfaction.



Case Study: Medical Devices – Successful Extension Springs Prototyping Projects for Surgical Tools

We’ve had the opportunity to work on numerous challenging projects. One particularly memorable project involved the development of extension springs prototyping for a new range of surgical tools. This case study outlines the process, challenges, and innovations that led to the successful prototyping and implementation of these critical components.

Project Overview

The project’s goal was to design and prototype extension springs for minimally invasive surgical tools that required precise control and durability under rigorous sterilization processes. The performance requirements were stringent: the springs needed to offer consistent tension, withstand high temperatures and corrosive environments, and have a long service life.

Material Selection

After a thorough analysis, we selected Elgiloy, a cobalt-chromium-nickel alloy known for its superior strength, corrosion resistance, and stability in high temperatures. Elgiloy’s properties make it an ideal choice for medical applications, especially those requiring repeated sterilization cycles.

Design Specifications

The extension springs were designed with specific parameters to meet the surgical tools’ unique demands:

• Pitch: The springs featured a tightly controlled pitch to ensure uniform force distribution and precise operation.
• Ends: We opted for closed and ground ends to provide stable mounting points and reduce uneven loading.
• Ring: Given the application’s sensitivity, the springs were designed with minimal dimensional variability, ensuring consistent performance.
• Tolerance: High precision tolerances (±0.01 mm) were applied to all dimensions to ensure the springs fit perfectly within the surgical tools without any need for adjustments.
• Load and Force Value: The springs were designed to operate under a load of 2N to 5N, with a stretch force requirement of up to 10N, providing the necessary flexibility and control for surgeons.
• Surface Treatment: A passivation process was applied to enhance corrosion resistance and ensure the springs would not react with human tissue or the harsh chemicals used in sterilization processes.

Working Environment and Challenges

The springs were to be used in environments that included exposure to bodily fluids and repetitive autoclave sterilization at temperatures exceeding 134°C. This necessitated the springs to not only be durable but also maintain their mechanical properties over thousands of use cycles.

Innovations and Solutions

To achieve the required specifications, several innovative solutions were implemented:

1. Advanced Coiling Techniques: Utilizing state-of-the-art CNC coiling machinery allowed for precise control over the spring’s geometry, ensuring consistency across batches.
2. Customized Heat Treatment Process: A bespoke heat treatment was developed to optimize the Elgiloy material’s properties, enhancing its fatigue resistance and ensuring long-term dimensional stability.
3. Real-World Testing: Prototypes underwent extensive testing, including simulated usage over thousands of cycles and exposure to various sterilization methods, to validate performance and durability.

Results

The prototyping project was a resounding success. The extension springs met all performance requirements, with an observed increase in service life by over 40% compared to the previously used materials. Surgeons reported improved handling and reliability of the surgical tools, directly impacting the success rate of minimally invasive procedures.
